SMARTFIRE DATA VISUALIZATION

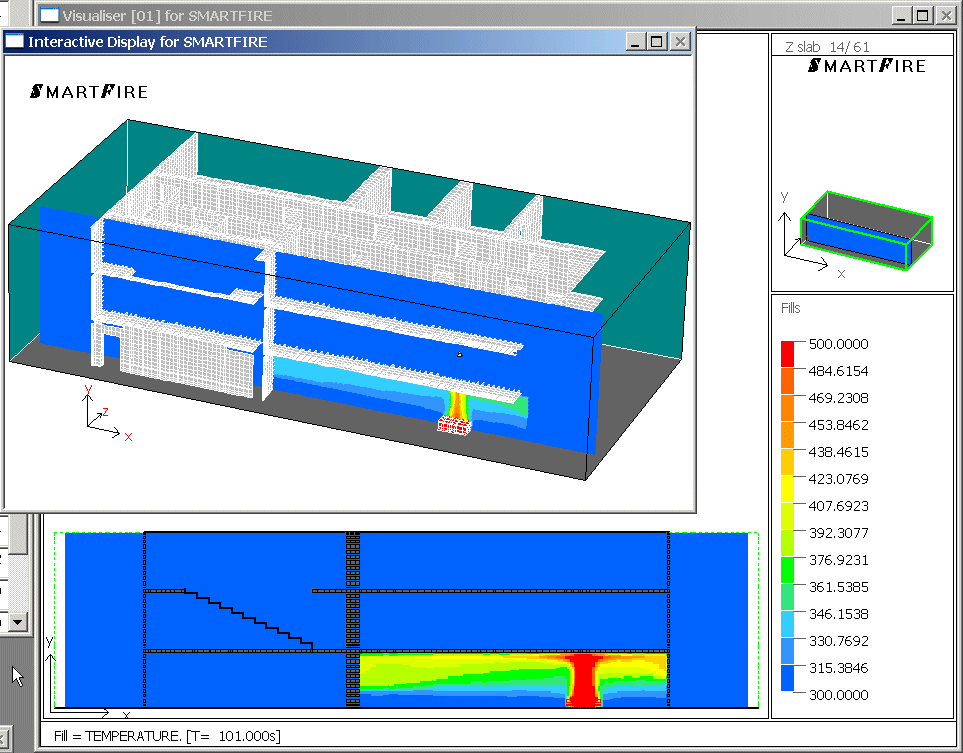

The SMARTFIRE CFD Engine has built-in visualization capabilities for displaying 2D planar slice visuals and 2D slice in 3D contextual visual displays. Whilst these displays are slightly limited as far as post processing or presentation display creation are concerned, they do give a quick and accurate representation of the solution state during the CFD processing. This gives the user high quality feedback as to the state of a simulation.

SMARTFIRE CFD Visualisation



The SMARTFIRE Data View program provides post processing visualization and animation capabilities. These include iso-surfaces, contour fill planes, velocity vectors for whole field or by plane, geometry import from WRL file and volumetric visualization of smoke.
